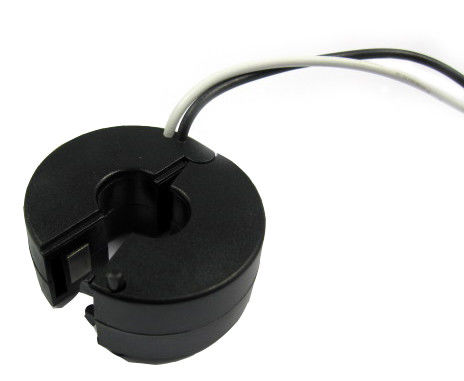

Parameter kelistrikan
| Frekuensi | 50-60Hz |
| Input dinilai | 5A-5000A |
| Rentang pengukuran | 10% In-130% In |
| Nilai Output | 0.333V (AC) atau 0-500mA |
| Perbandingan | ± 1,0 ％ |
| Sudut fase | ≤ ± 90 menit |
| Kekuatan dielektrik | 2.5KV / 1mA / 1 menit |
| Resistensi isolasi | DC500V / 100MΩmnt |
Parameter Mekanik
| Kasus | PC / UL94-V0 |
| Gelendong | PBT |
| Inti | Permalloy |
| Struktur internal | Epoksi |
| Konstruksi | Dasi |
| Temp operasi | －25 ℃ ～ ＋ 75 ℃ |
| Kelembaban Operasi | ≤85% |
| Koneksi Output | UL1015 22AWG Wire (kawat twinsted) 2.0m |
Fitur:
Aplikasi:

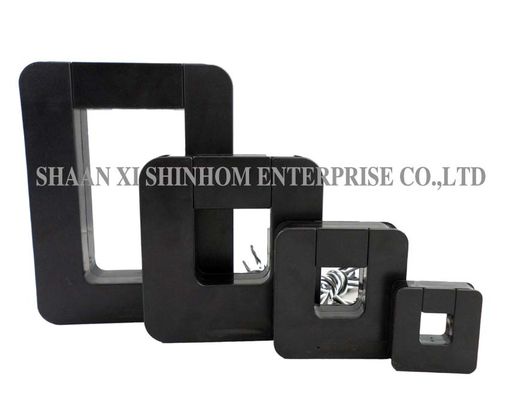

Jenis pemilihan
P / N | Input dinilai (SEBUAH) | Output (mA / V) | Ketepatan | Dimensi (mm / inci) | |||||
SEBUAH | B | C | D | E | |||||

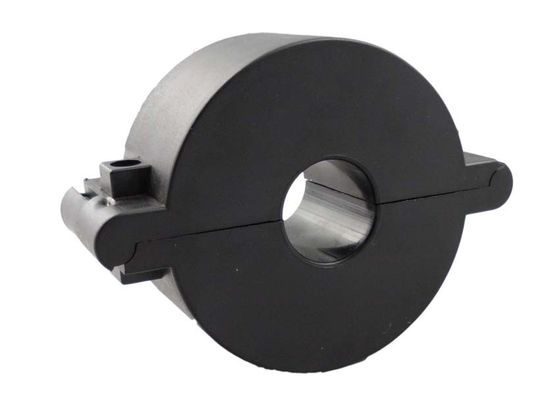

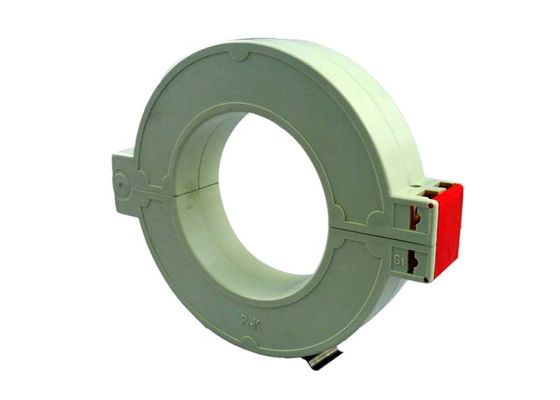

SCTK751A | 5-200A (5,10,30,50,75,100,125,150,200) | 0-13.3mA 0.333V | 1.0 | 50.8 (2,00) | 53.3 (2.09) | 15.0 (0,59) | 19.1 (0,75) | 19.1 (0,75) | |
SCTK751B | 10-400A (10,50,75,150,200,250,300,400) | 0-26.6mA 0.333V | 1.0 | 59.6 (2.35) | 62.7 (2.47) | 21.0 (0,83) | 19.1 (0,75) | 19.1 (0,75) | |
SCTK751C | 50-630A (50.100.125.200.250.400.600.630) | 0-66.6mA 0.333V | 1.0 | 82.5 (3.25) | 85.1 (3.35) | 25.6 (1,01) | 31.8 (1.25) | 31.8 (1.25) | |
SCTK751D | 100-2000A (100.250.400.630.800A, 1000.2000) | 0-200mA 0.333V | 1.0 | 121.0 (4.76) | 127.0 (5.00) | 30.4 (1.19) | 50.8 (2,00) | 50.8 (2,00) | |
SCTK751E | 200-3000A (200.250.400.630.1500.2500.3000) | 0-300mA 0.333V | 1.0 | 118.0 (4.65) | 133.0 (5.24) | 24.0 (0,94) | 68.0 (2.68) | 80.0 (3.15) | |
SCTK751F | 400-5000A (400.800.1000.1500.2000.3000.5000) | 0-500mA 0.333V | 1.0 | 146.0 (5.75) | 190.5 (7,50) | 35.6 (1.40) | 76.2 (3,00) | 127.0 (5.00) | |
Petunjuk penggunaan
Catatan: Spesifikasi produk dapat disesuaikan
