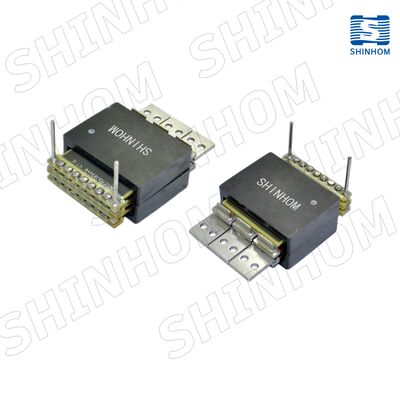

TP32 Series 400W High-Power Planar Transformer with High-Frequency Operation and UL 94V-0 Rated Materials

The TP32 Series High-Power Planar Transformer is engineered for DC/DC converter and high-efficiency switching power supply applications. Featuring low-profile PCB mounting and high-frequency operation, this transformer delivers efficient power conversion while maintaining a compact footprint.

Manufactured using UL 94V-0 rated materials and compliant with UL1950 / EN60950 standards, the TP32 series provides high reliability and thermal stability in demanding power electronics environments. Available in multiple EE core sizes (EE14, EE16, EE18, EE22, EE32, EE38, EE43, EE64, EE100, EE150), the transformer supports power ratings up to 3,000 W and is compatible with standard off-the-shelf SMT planar transformer assemblies.

• High-Power Capability - Supports DC/DC converters and switching power modules up to 3,000 W
• Low-Profile PCB Mounting - Compact size suited for space-constrained applications
• High-Frequency Operation - Ideal for modern high-efficiency power supplies
• Wide Operating Temperature Range - -20 to 85°C operating, -20 to 130°C storage
• UL Certified Materials - UL 94V-0 rated for enhanced safety and reliability
• Versatile EE Series Options - EE14 through EE150 series planar transformers available
• Integrated Choke Options - Planar common mode, power, compensated PFC, and line filter modules

• DC/DC converters
• Switching power supplies
• High-efficiency SMPS modules
• Power factor correction (PFC) circuits
• PCB-mounted high-power electronics
