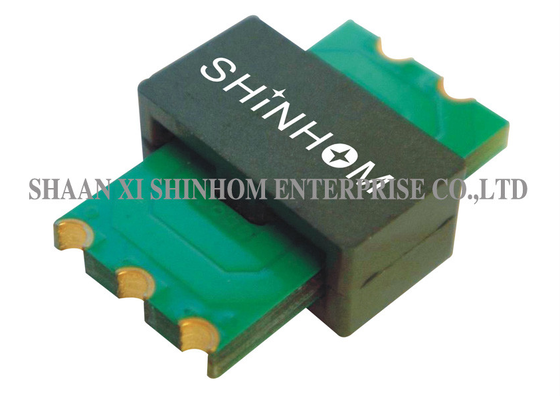

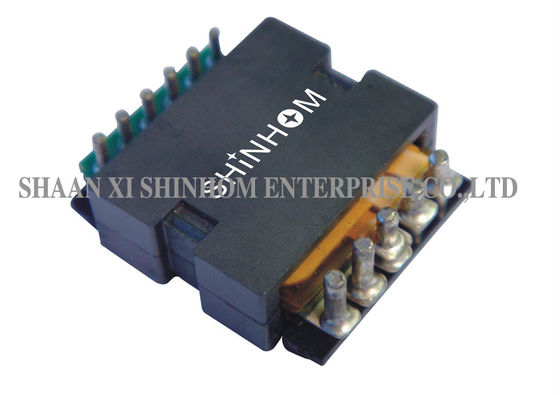

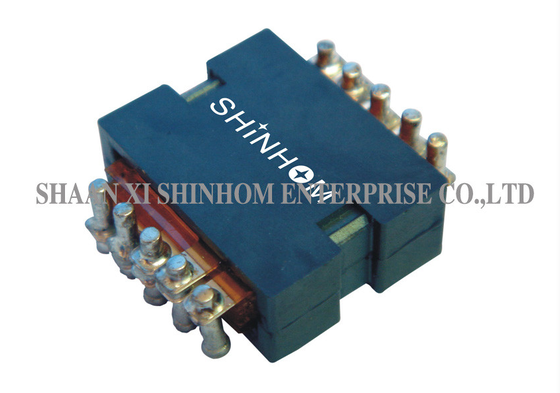

High Isolation High Frequency Planar Transformer TP20A Series 100W 1500Vdc for SMPS

perundingan
MOQ
Bisa dinegosiasikan
harga
High Isolation High Frequency Planar Transformer TP20A Series 100W 1500Vdc for SMPS
fitur Galeri Deskripsi Produk bicara sekarang
fitur
Spesifikasi
Frekuensi: 200KHz hingga 700KHz
Kekuatan: 100W
Ukuran Bantalan: 20.12*18.5mm
Ketebalan: 7.4mm
Suhu Operasi: -40℃ hingga +125℃
Disesuaikan: Disesuaikan
Informasi dasar
Tempat asal: Cina
Nama merek: Shinhom
Sertifikasi: RoHS
Nomor model: TP20A
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: karton
Waktu pengiriman: 4~8 Minggu
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 100000/Bulan
Deskripsi Produk
The TP20A series high-frequency 100W planar transformer is designed for DC-DC converters and switching power supply applications. Power range is 75-100W , with a maximum thickness of only 7.4mm and a footprint of 20.12*18.50mm . The product operates at 200kHz-700kHz , with a working isolation voltage of 1500Vdc . It offers ultra-low leakage inductance , high efficiency , and minimal EMI , compatible with all SMPS topologies. Multiple mounting and termination options are
Label:

low profile transformer

flat pack transformer

planar power transformer
